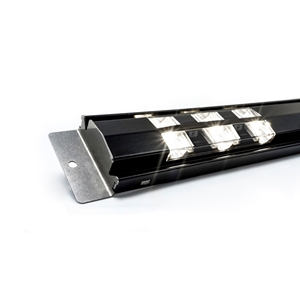

Optimax OP30 Radiant LED
60" long designed for application with center door panel.
Features a standard output of 3500K and a CRI of 85.
Fixture Specifications:
• Voltage, 24VDC
• CCT, 3500K/4000K
• L70 life, 100,000 Hours
• Uniformity, 1.1:1
• LUX: OP30 (1250), OP45 (1400), OP55 (1250)
- Avg Lux measured at 4” (OP30, OP45) and at 10” (OP55) from frame at door centerline
Driver Specifications:
• UL Class 2 Low Voltage
• Input 120-277VAC, 50/60 Hz
• Output, 24VDC, 100w Max
